OVERVIEW
Magnetic flap level gauge utilizes buoyancy principle and magnetic coupling technology to linearly transmit changes in liquid level to the indicator, clearly indicating the height of the liquid level. It can provide on-site indication and remote signal transmission, making it a multifunctional liquid level measuring instrument.
UFZ-52 Magnetic Float Level Gauge (Magnetic Flip Plate Level Gauge)
TECHNICAL PARAMETER
- Work pressure: 6.3, 10.0, 16.0 (MPa)
- Medium temperature: ≤ 100 º C
- Heat tracing steam pressure: ≤ 0.6MPa
- Heat tracing pipe size: M12 × 1 (internal)
- Material: Class I - Carbon Steel (20 #, 25 #, 16MnR, 16Mn, etc.) Class II - Stainless Steel
- Connection method: convex high neck flange, DN20 JB/T82.2-94、HG20595-97

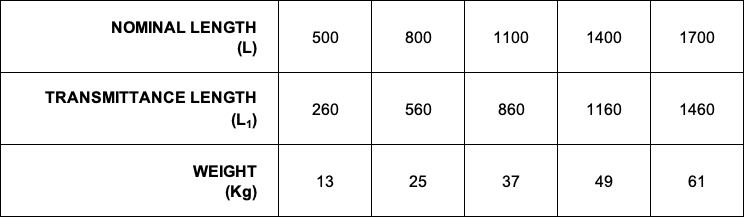

- structure size
